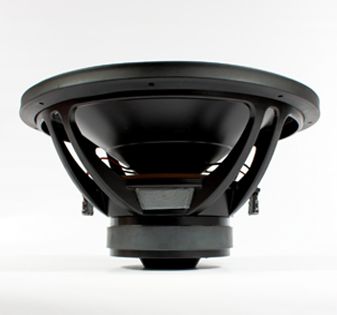

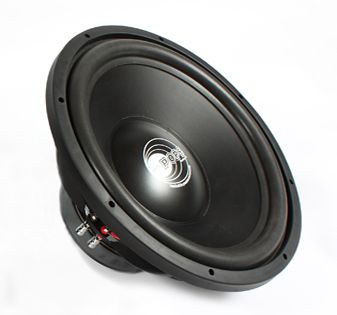

P1000-15

Dual 4 Ohms
1000 Watts
Power Handling = 1000 Watts peak; 500 Watts RMS each
Frequency Response = 25-1,000 cycles

Features

High-strength 15” aluminum-cast basket with venting to allow cooler operating temperatures and lower air pressure under spider
Double foam, heavy-duty polypropelane cone for low distortion at high volume
85 oz high-energy magnet for efficiency and high output
6” vented and extended T-YOKE to prevent damage to voice coil, relieve pressure under dust cap, and enable speaker to run at cooler temperatures
Extended pole piece to enhance magnetic field linearity
Long-throw 2.5” dual 4 ohm kapton voice coil for vast cone excursions, durability, and heat dissipation under high power
Extra-stiff polycotton flat spider for greater restoring force and linearity

Specifications

Total Weight, lb    17
Nominal Impedance [Zn], ohm [per coil]    4
Resonance Frequency [fs], Hz    30
Sensitivity [SPLo], dB at 1W, 1m    91
Effective Piston Area [Sd], in²    127
Power Handling Watts, Peak (RMS)   500
Effective Frequency Range, Hz    25-1,000
Effective Excursion [EXmax Tm], in    0.505
DC Resistance [Re], ohm [coils in series]  7
Voice Coil Inductance [Le], mH [per coil]  5.7
Voice Coil Diameter [d], in    2.5
Voice Coil Length [h], in    1.118
Outer Frame Diameter, in    16
Hole Cut-Out Diameter, in    14
Mounting Depth, in    7.68
Magnet Weight, oz    66.9

Recommended Sealed Enclosure – Moderate Efficiency
Compact (Minimum Enclosure Volume)    2.4 ft³
SQ (Maximum Enclosure Volume)            7.3 ft³

Recommended Rectangular Port Enclosures – High Efficiency
Compact             3.4 ft³ + port displacement
                           2.5” x 12.5” port, 20” long
                          (6.4 cm x 31.8 cm port, 50.8 cm long)
SPL/Deep Bass   4.6 ft³ + port displacement
                           3” x 12.5” port, 20.5” long
                          (7.6 cm x 31.8 cm, 52.1 cm long)
