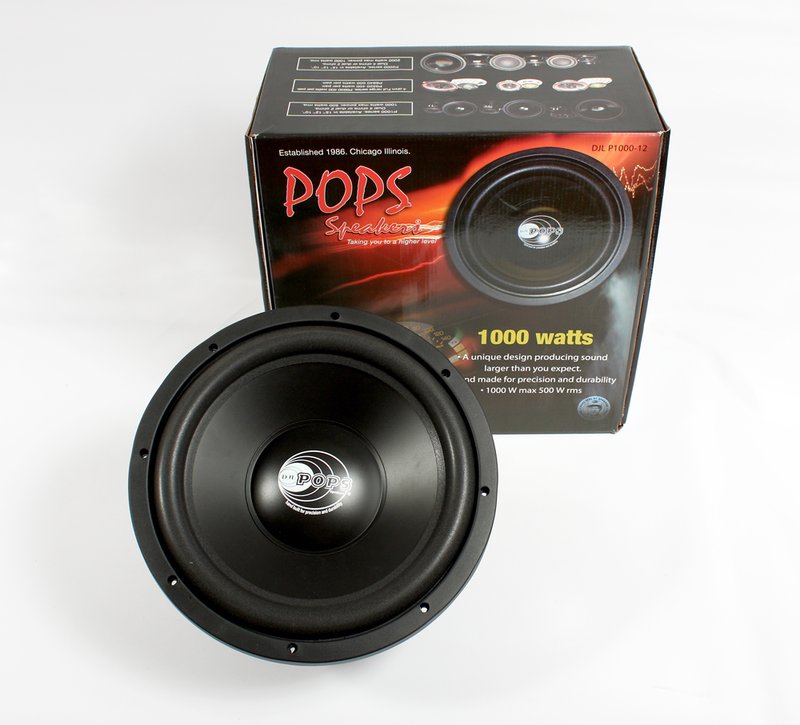

• P1000-12

    $120.00
    Free Shipping!

    Dual 4 Ohms
    1000 Watts
    Power Handling = 1000 Watts peak; 500 Watts RMS each
    Frequency Response = 25-1,000 cycles

    Features

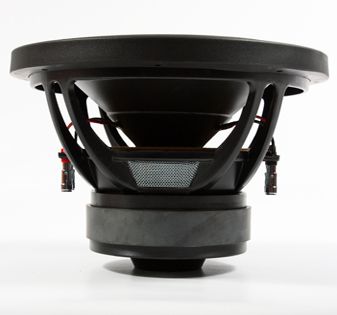

    High-strength 12” aluminum-cast basket with venting to allow cooler operating temperatures and lower air pressure under spider

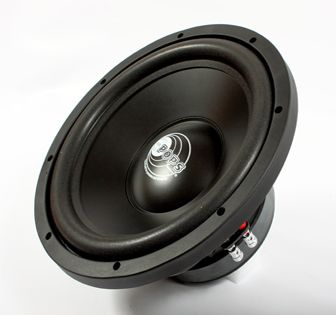

    Double foam, heavy-duty polypropelane cone for low distortion at high volume
    85 oz high-energy magnet for efficiency and high output
    6” vented and extended T-YOKE to prevent damage to voice coil, relieve pressure under dust cap, and enable speaker to run at cooler temperatures
    Extended pole piece to enhance magnetic field linearity
    Long-throw 2.5” dual 4 ohm kapton voice coil for vast cone excursions, durability, and heat dissipation under high power
    Extra-stiff polycotton flat spider for greater restoring force and linearity

    Specifications

    Total Weight, lb    15
    Nominal Impedance [Zn], ohm [per coil]    4
    Resonance Frequency [fs], Hz    30
    Sensitivity [SPLo], dB at 1W, 1m    90
    Effective Piston Area [Sd], in²    77.923
    Power Handling Watts, Peak (RMS)   500
    Effective Frequency Range, Hz    25-1,000
    Effective Excursion [EXmax Tm], in    0.505
    DC Resistance [Re], ohm [coils in series]   7
    Voice Coil Inductance [Le], mH [per coil]  5.7
    Voice Coil Diameter [d], in    2.5
    Voice Coil Length [h], in    1.118

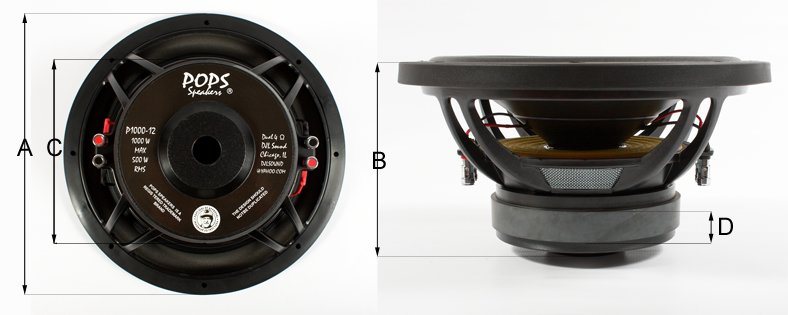

    Outer Frame Diameter, in    12.6
    Hole Cut-Out Diameter, in    11.3
    Mounting Depth, in    6.5
    Magnet Weight, oz    66.9


    Recommended Sealed Enclosure – Moderate Efficiency
    Compact (Minimum Enclosure Volume)    0.85 ft³
    SQ (Maximum Enclosure Volume)            4.6 ft³

    Recommended Rectangular Port Enclosures – High Efficiency
    Compact             1.8 ft³ + port displacement
                               2.5” x 12.5” port, 20” long
                              (6.4 cm x 31.8 cm port, 50.8 cm long)
    SPL/Deep Bass   2.85 ft³ + port displacement
                               3” x 12.5” port, 20.5” long
                              (7.6 cm x 31.8 cm, 52.1 cm long)
